Pickup Direct To Jack Wiring . How To Wire A Guitar Pickup Use resistors and cap that you would normally use, ie., 500k resistors for 500k pots, 250k resistors for 250k pots, etc That confirms my understanding, but unfortunately still leaves me baffled as to why wiring a single coil pickup directly to the guitar jack still yeilds a tone heard through the amp.
2 Pickup Guitar Wiring Diagram Humbucker Soup from humbuckersoup.com
If you do need a tone variation try different vaue Capacitors until you get the sound you like ( Wired between live and ground ) Will. Re: Wiring pickups straight to output jack? Do this quick-'n-dirty mod to simulate a vol/tone control on "10"
2 Pickup Guitar Wiring Diagram Humbucker Soup If you do need a tone variation try different vaue Capacitors until you get the sound you like ( Wired between live and ground ) Will. you can add a switch to select to roll of extra highs when you want to I'm far from being an electronics whizz but I'm guessing that I would need to have a cap between pickup.
Source: moviewebfqk.pages.dev Pickup Wiring 1 Conductor Cabled Pickups Bartolini Pickups & Electronics , I've heard of folks wiring directly from the pickup to the output jack (famously only Neil Young), and I'm nearly always a fan of shorter signal paths, so I. The yellow wire from the pickup is connected to the volume control, then the signal continues out of the vol control to the jack with a white wire.

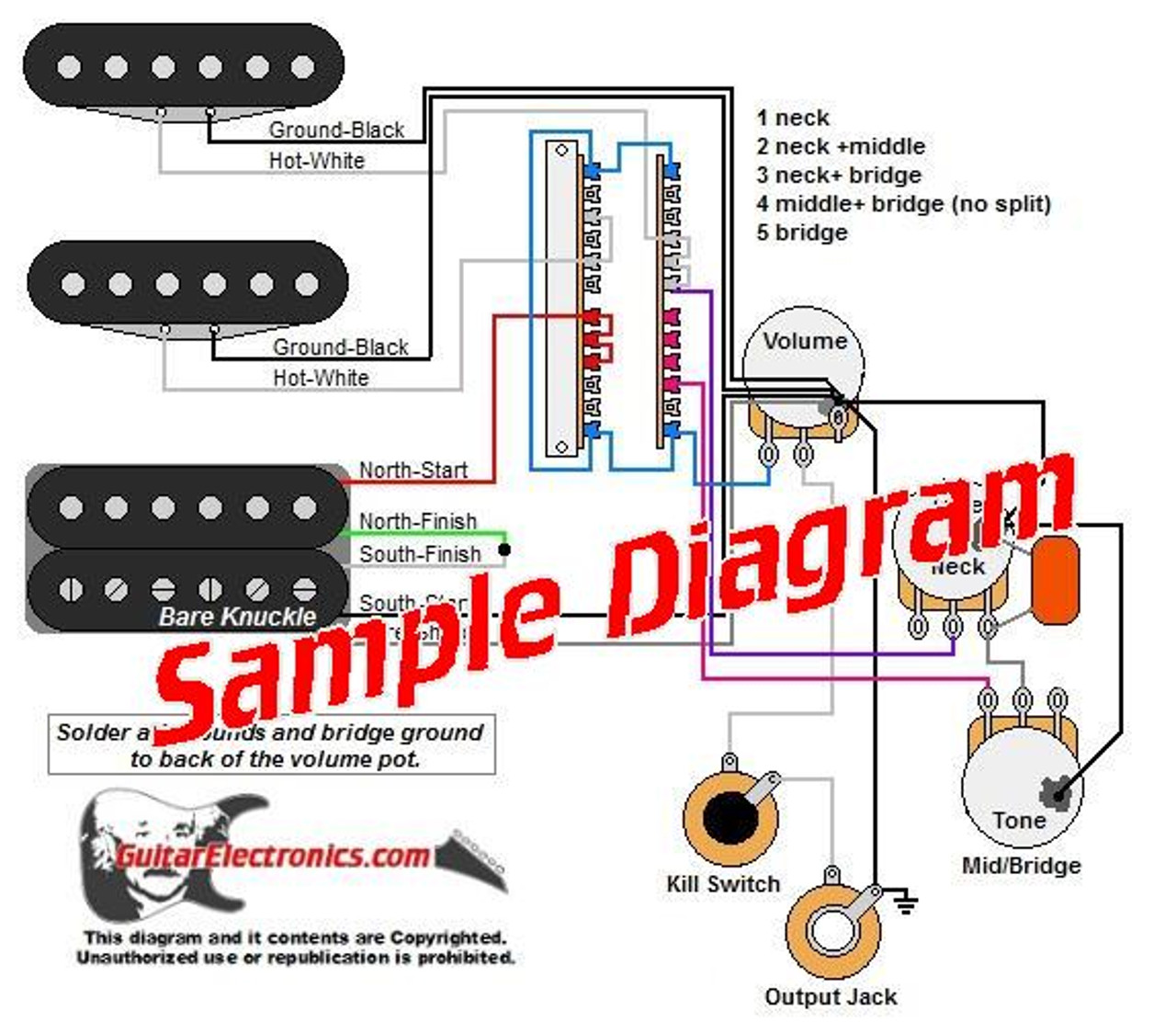

Source: saintandyxn.pages.dev 3 Pickup Custom Designed Guitar Wiring Diagrams , Re: Wiring pickups straight to output jack? Do this quick-'n-dirty mod to simulate a vol/tone control on "10" If you do need a tone variation try different vaue Capacitors until you get the sound you like ( Wired between live and ground ) Will.
Source: thaiexpoatb.pages.dev Electric Guitar Pickup Wiring Diagram , The thing is that I play with the tone control all the way round, rolling all the bass off, so its not going to work by simply connecting the pickup to the jack This will give the classic 'both pickups in parallel' Jazz bass sound.
Source: stemproskja.pages.dev How To Wire Electric Guitar Pickups , You may find it easier to run the grounds/commons together to a separate point, and run one wire from that point to the jack sleeve. If I have the bridge pickup on, volume and tone both at 10, there is a slight difference in tone when flipping the switch
Source: artcastvay.pages.dev How To Wire A Guitar Pickup , I'm far from being an electronics whizz but I'm guessing that I would need to have a cap between pickup. I have a switch on my PC-1 that bypasses all the controls and sends the bridge pickup directly to the output jack
Source: lispavwzc.pages.dev Telecaster Wiring 101 Fralin Pickups , If you do need a tone variation try different vaue Capacitors until you get the sound you like ( Wired between live and ground ) Will. Re: Wiring pickups straight to output jack? Do this quick-'n-dirty mod to simulate a vol/tone control on "10"
Source: citifuelrhy.pages.dev Guitar Volume Pot Wiring The Ultimate Guide with StepbyStep Instructions Moo Wiring , Or roll your volume and tone control full up and put a switch to lift their grounds same effect as wiring your pickup direct. I'm far from being an electronics whizz but I'm guessing that I would need to have a cap between pickup.
Source: choitetvwx.pages.dev Stratocaster Wiring Tips, Mods & More! Fender stratocaster, Guitar pickups, Stratocaster guitar , The "hot" leads both go to the "tip" connector of the jack, and the "common" leads go (along with the bridge ground wire) to the "sleeve" connector of the jack I have a switch on my PC-1 that bypasses all the controls and sends the bridge pickup directly to the output jack
Source: ladagavil.pages.dev Jackson Pickups — The Ultimate Installation Guide Humbucker Soup , This will give the classic 'both pickups in parallel' Jazz bass sound. If you do need a tone variation try different vaue Capacitors until you get the sound you like ( Wired between live and ground ) Will.
Source: tribbyuyj.pages.dev Piezo Pickup Basics Using Disk Piezos In Cigar Box Guitars Part 2 C. B. Gitty Crafter Supply , If you do need a tone variation try different vaue Capacitors until you get the sound you like ( Wired between live and ground ) Will. Re: Wiring pickups straight to output jack? Do this quick-'n-dirty mod to simulate a vol/tone control on "10"
Source: saimarturz.pages.dev DIY How to wire a singlepickup electric guitar , The "hot" leads both go to the "tip" connector of the jack, and the "common" leads go (along with the bridge ground wire) to the "sleeve" connector of the jack In your diagram, the yellow wire from the pickup is connected to the white from the jack, which can make things confusing if you're just going by color
Source: austroxbw.pages.dev The Original Eddie Van Halen Wiring Guitar diy, Guitar tech, Guitar pickups , I'm far from being an electronics whizz but I'm guessing that I would need to have a cap between pickup. You may find it easier to run the grounds/commons together to a separate point, and run one wire from that point to the jack sleeve.
Source: saintandmxf.pages.dev Wiring a 3 Way Switch Sending Pickup Directly To Output Jack??? Telecaster Guitar Forum , You may find it easier to run the grounds/commons together to a separate point, and run one wire from that point to the jack sleeve. The thing is that I play with the tone control all the way round, rolling all the bass off, so its not going to work by simply connecting the pickup to the jack
Source: davonteuws.pages.dev 7 Pickup Installation and Wiring Documentation Resources Guitar Chalk Guitar, Guitar pickups , I never use my volume or tone controls and am looking to wire the pickup from my Warmoth single coil P bass directly to the jack If you do need a tone variation try different vaue Capacitors until you get the sound you like ( Wired between live and ground ) Will.
Source: vppobcigl.pages.dev Wiring a 3 Way Switch Sending Pickup Directly To Output Jack??? Telecaster Guitar Forum , Re: Wiring pickups straight to output jack? Do this quick-'n-dirty mod to simulate a vol/tone control on "10" I never use my volume or tone controls and am looking to wire the pickup from my Warmoth single coil P bass directly to the jack
DIY How to wire a singlepickup electric guitar . In your diagram, the yellow wire from the pickup is connected to the white from the jack, which can make things confusing if you're just going by color That confirms my understanding, but unfortunately still leaves me baffled as to why wiring a single coil pickup directly to the guitar jack still yeilds a tone heard through the amp.
learn how to mod your Strat to connect the pickup directly to the output jack, E… Guitar Gear Geek . You may find it easier to run the grounds/commons together to a separate point, and run one wire from that point to the jack sleeve. you can add a switch to select to roll of extra highs when you want to
